Ultimate Upgrade pack for Dillon XL650. You save 69 EUR with this pack.
Components separately cost 227,00 EUR.
All items are made in EU and shipped from EU.
! Some products in the kit do not ship to the US !

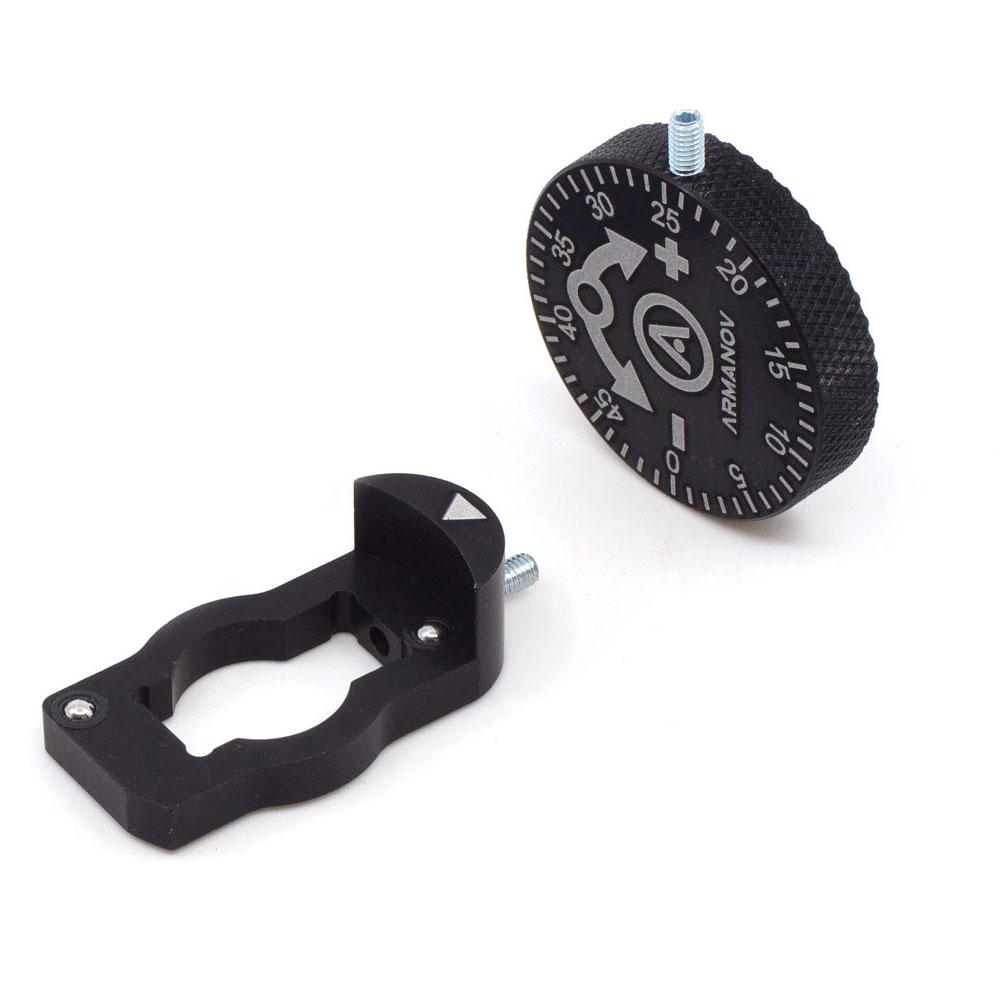

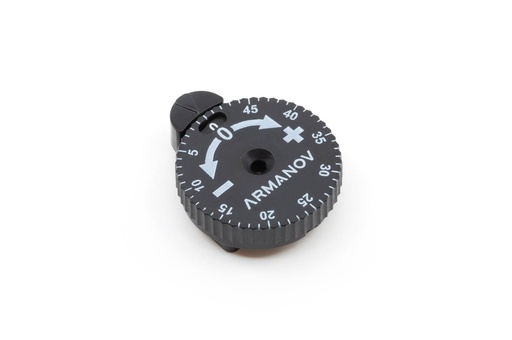

Clickable Dillon Precision Powder Thrower Adjustment Knob Assembly - 50 clicks - Small bar
This easy to install clickable powder knob assembly. Just screw the assembly on the dillon factory adjustment bolt. The Dillon factory screw requires a wrench when adjusting the amount of powder to dispense in your powder thrower. The knob easily allows the user to hand adjust the powder dispenser without the need for tools. Unlike other competitors, the Armanov knob is laser etched with 50 graduations giving the user reference points when adjusting. Two steel spring loaded balls generates smooth and repetable clicks. Easy to setup between multiple loads or even calibres, very precise 50 clicks per turn. Testing on pistol powders one click increments about 0.015 grains. This is very precise setting.
Works on Dillon 1050, 650, 550, SDB and 900 presses. This accessory is a must for every Dillon owner to help speed up powder adjustment amounts and quick change between multiple loads or even multiple calibers.
No disassembly or even original bolt movement required. You keep current powder setting.

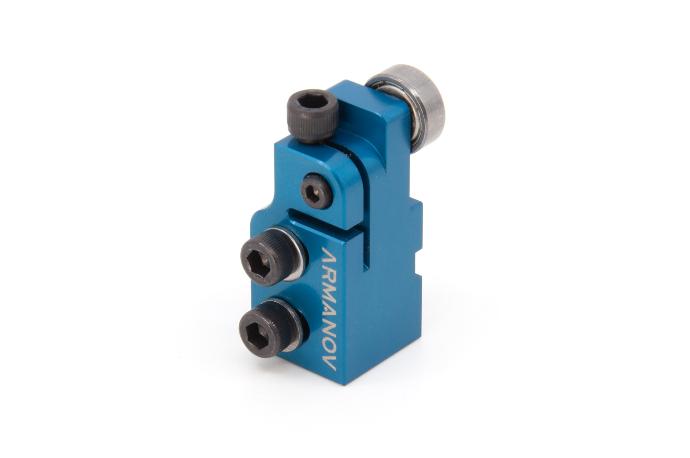

Armanov Index Cam Bearing Block. Compatible with the current model Dillon Precision XL650 progressive reloading press.
This is a premium upgrade that smooths the action for the index cam and removes the need for grease on the index pawl.
It replaces the steel block that causes friction and drag. Included is one aluminum bearing block with a sealed ball bearing.

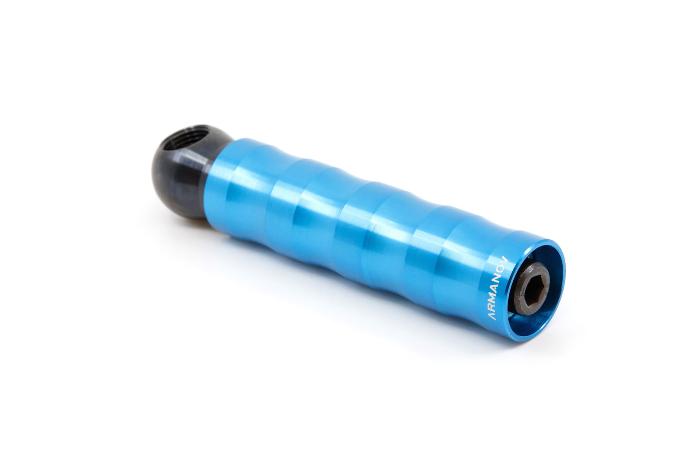

Ball Bearing Roller handle for dillon XL650 and RL550 (Aluminum)
This Roller handle gives you an entirely new "feel." A roller handle reduces operator fatigue during long reloading sessions and makes primer seating easier. Fits the RL550 and XL650 loaders. Extremly easy to assemble. Just unsrew your ball and screw this aluminum ball bearing roller handle. It fit's Dillon XL650 and RL550 reloading machines. Extremly low friction thanks to integrated two ball bearings. Finger grooves also improve your grip.

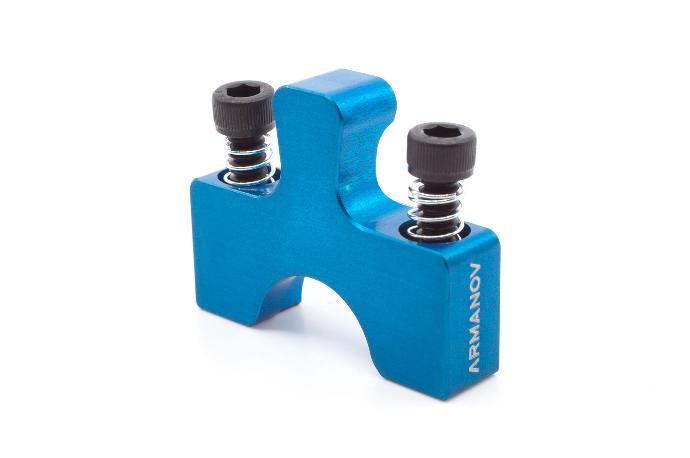

Quick Disconnect for Dillon Powder Measure
Installation is super simple. Just remove original half-ring retention and install Armanov Quick Disconnect for Dillon. It has two internal springs and allows quick change of powder bar from one toolhead to another.
Armanov Quick Disconnect fits on the RL550, XL650, and Super-1050 powder measures. It is specially useful In combination with Clickable Armanov powder knob. So you can reuse powder measure on other tool-heads and adjust powder quantity with simple clicks. Quick and tool-less removal and installation of Dillon Powder Measures.

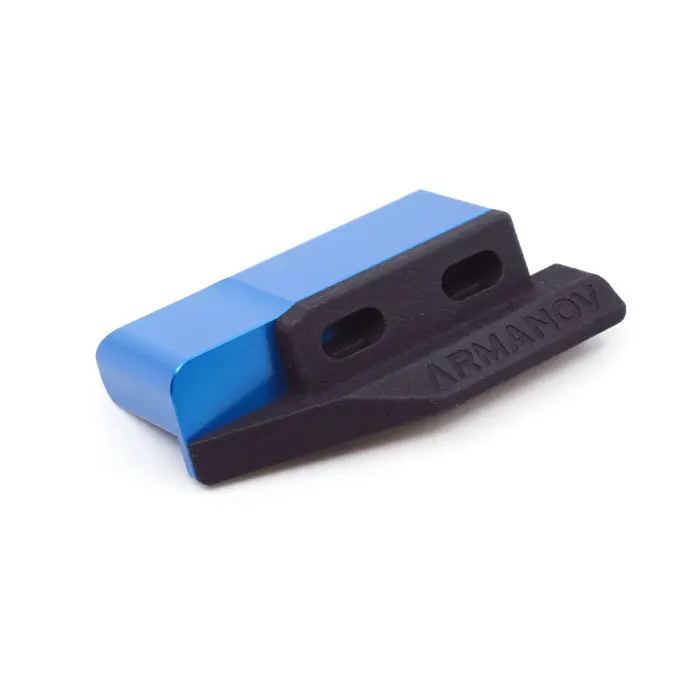

Primer Stop Switch for Dillon XL650
Primer cam Index Stop Switch for Dillon Precision XL650 and SL-900 Progressive Reloading Press. The switch moves to turn ON and OFF the index by bypassing the indexing lever on the primer feed assembly. Integrated spring ball works as clickable position capture. Use the factory screw to install. Material for the base is 6082 aluminium and material for the ramp is Delrin (POM-C). Spare ramps can be ordered separately. Super simple install. Just unscrew original primer cam and use same bolt to attach this stop switch.

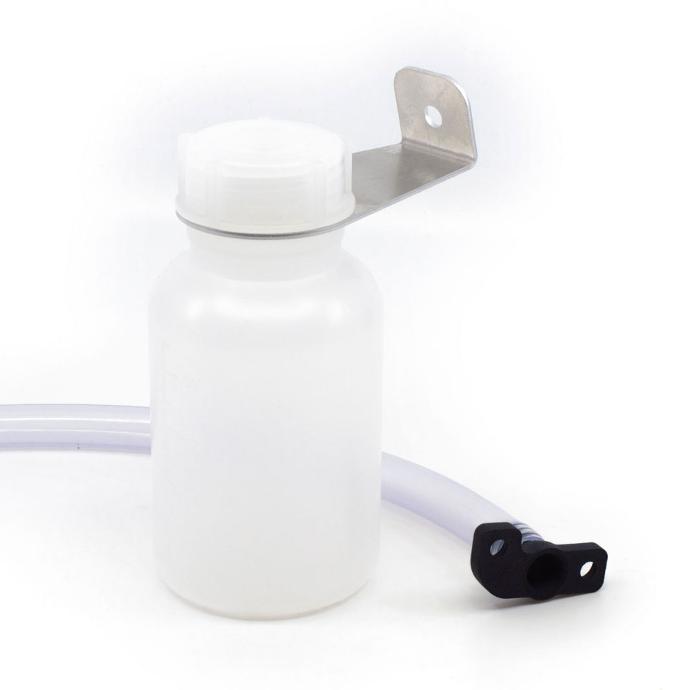

Primer Chute for Spent Primers with Holder and Bottle
Primer chute for spent primers replaces the blue plastic spent primer cup and bracket on the Dillon 650 reloading press. It completely covers the spent primer ejection port, creating a fully enclosed pathway for spent primers. Spent primers are routed through clear PVC tubing into plastic bottle which you fix with a holder on a strong mount. No more spent primers on floor.
Primer chute fits your dillon XL650. It is fastend with two bolts (existing). Instalation time about 1-2 minutes. Made form Aluminium. Also works great with large primers.
- Aluminum chute
- Transparent tube
- Holder for Strong Mounts
- Plastic Bottle
Stop ramp for live primers will prevent live primers to drop from your machine
Dillon 650 live primer upgrade. Stop ramp for live primers. Fits reloading machine dillon XL650. Just put it on your existing live primer ramp. 3D printed from on high-end printer from high quality ABS plastics.
Hex key holder for original Dillon hex keys and some accessories.
Simpli attach this hex hey holder to your casefeeder rod and keep your hex keys oragnised. There is also some space for pins.
Primer follower rod holder hook
Compatible with the current model Dillon XL650 RL550 and Super 1050 (probably a few others too that have the 9/16-18 thread). Ample room in the hook area for those with weighted follower rods too. Installation: No tools required. Remove the primer alarm and the primer tube top nut. Thread this holder onto the primer tube with the hook area up. Thread it all the way on then back a little bit as needed to position it to the side as pictured. Reinstall the primer tube top nut. Due to variances in machines, the top nut may or may not be tight for desired alignment. Reinstall the primer alarm.
Case Bin Stopper
The case bin stopper fits into the front of the Cartridge Collection Bin used on Dillon, RCBS and LEE presses, and keeps rounds from rolling out and onto the floor when the bin gets near full. With the case bin stopper in place, you can use 100% of the cartridge collection bin's capacity! The bins can still be stacked with the case bin stopper in place. Made from durable 1,5mm thick aluminum and with nice white window for your marking.

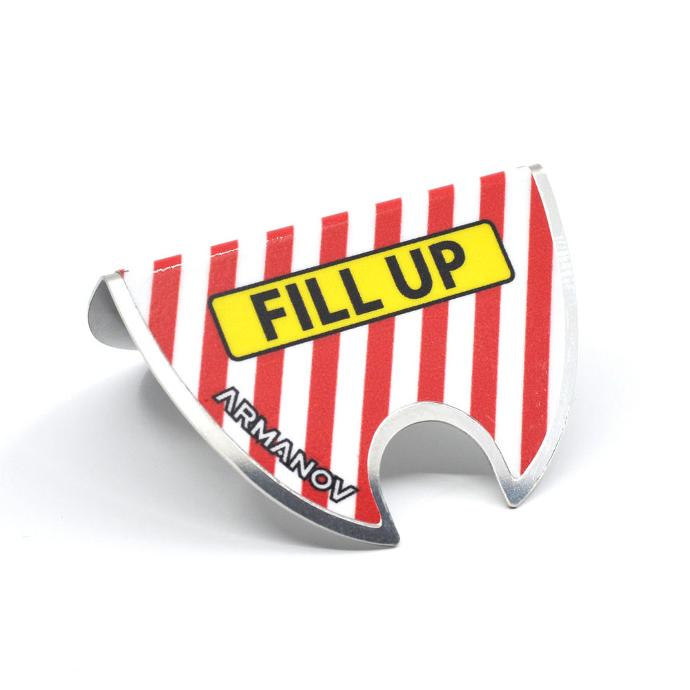

Precision Powder Baffle for Dillon Powder Measure with visual alarm
Powder Baffle is a must have reloading accessory that dramatically increases powder load consistency and accuracy! When reloading your own ammunition it is common to produce 500 to 1,000 rounds per hour. At this rate your powder reservoir empties pretty fast. The weight of powder in the tube affects how full of a charge your bullets receive. A baffle ensures consistent weight on the powder at the bottom of the reservoir, giving you consistent loads. This design eliminates direct weight from the powder in the powder tube reservoir to the charge bar allowing the most consistent and accurate flows. Whether the powder reservoir tube is full, half way or almost empty your averageload should be consistent. Powder Baffle is made from stainless steel. Fits on Dillon Auto Powder Measure . It only takes a few seconds to drop it down into the bottom of the Dillon powder hopper. The powder hopper is not modified and your Dillon Warranty will not be effected.
